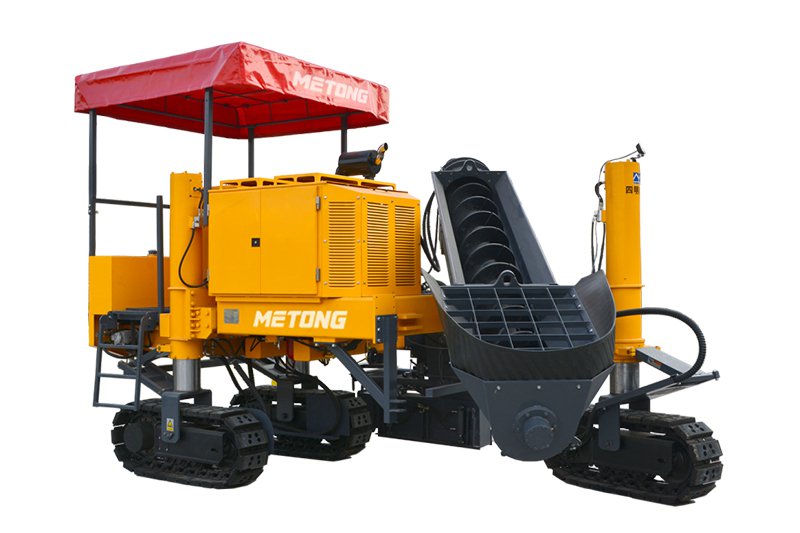

Three-Track Slipform Paver
The SMC-5500 three-track slipform paver is a multifunctional concrete paving machine developed by Metong for concrete structure construction. It uses fully electronic control, fully hydraulic drive, a three-track travel system, automatic steering, and automatic leveling control.
The three-track slipform paver can complete concrete vibration, paving, forming, and finishing in one continuous process. With strong power reserve, flexible maneuverability, and strong jobsite adaptability, the three-track slipform paver is suitable for concrete structure paving in road construction, municipal engineering, and related infrastructure projects.
Specifications
| Engine Model | SDEC SC7H125G3 |
| Rated Power / Speed (kW/rpm) | 92 / 2200 |
| Engine Type | Electronically Controlled High-Pressure Common Rail |
| Max. Gradeability (%) | ≥20 |
| Three-Filter System | Suction, Pressure, and Return Filters |
| Min. Paving Radius (mm) | 600 (Side-mounted mold) |
| Max. Paving Height (mm) | 1800 |
| Max. Paving Thickness (mm) | 900 |
| Transport Dimensions (L×W×H) (mm) | 5500×1000×1000 |
| Vibration Type | Hydraulic |
| Standard Vibration Circuits | 8 (Expandable to 10) |
| Column Lifting Method | Hydraulic + Mechanical |
Features
- Open operator platform
The open operator platform provides a wide field of view, allowing the operator to clearly observe key working areas such as the feeding unit, hopper, and mold. - Flexible feeding system
The feeding system is available with a standard auger feeding unit or an optional belt feeding unit. Feeding speed can be adjusted steplessly for smooth, stable operation. - Multiple steering modes
Three-track slipform paver supporting front steering, crab steering, coordinated steering, and spot steering. The system can automatically adjust each track’s steering angle and speed to improve maneuverability during slipform paving.
