Wet & Dry Road Sweeper

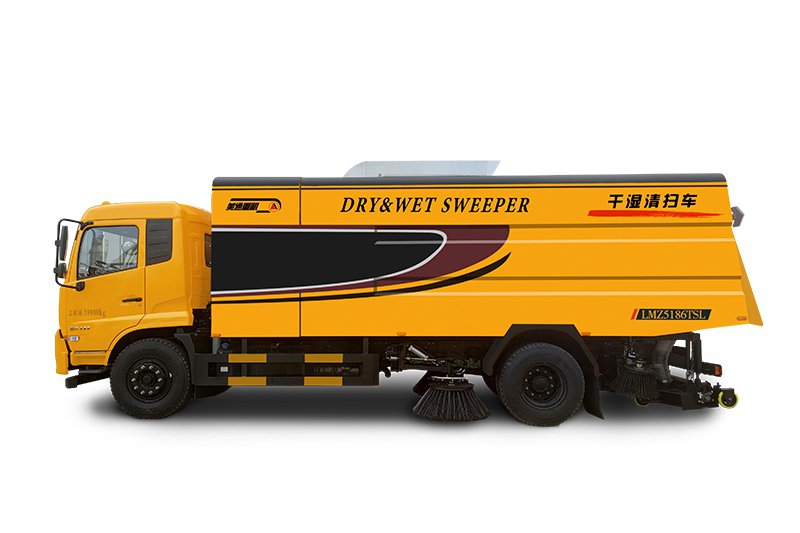

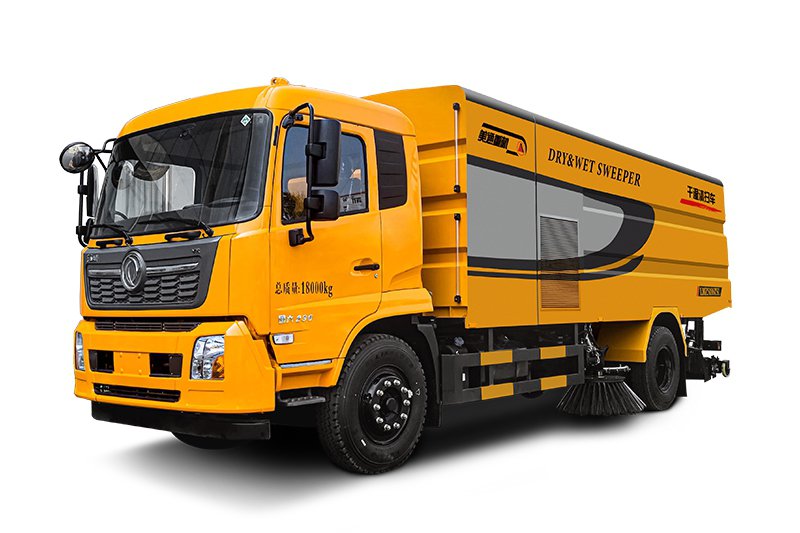

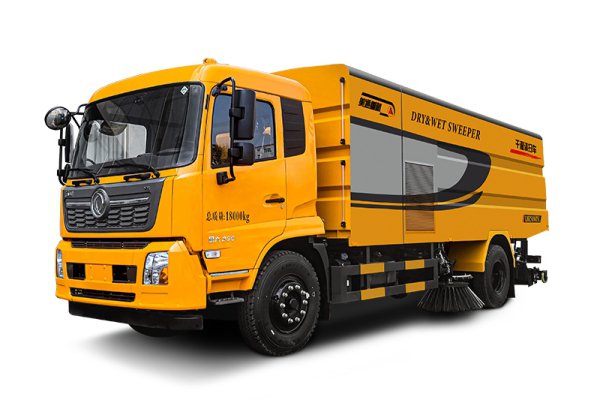

The LMZ5186TSL wet and dry road sweeper is built on a DONGFENG Tianjin truck chassis and equipped with a dual-purpose wet and dry sweeping system.
The wet and dry road sweeper is mainly used for sweeping and dust collection on highways, major roads, cement-stabilized surfaces, milled pavement, mines, ports, power plants, stone yards, and other work sites. It can also be used for general road surface sweeping on local roads and municipal streets.
When water spraying is not suitable for dust suppression, the wet and dry road sweeper can still support dust-controlled sweeping, making it suitable for pavement cleaning and worksite maintenance under different operating conditions.
Specifications
| Overall Dimensions (L×W×H) (mm) | 9110×2490×3530 |
| Hopper Capacity (m³) | 12 |
| Chassis Model | DFH1180EX8 |
| Chassis Manufacturer | DONGFENG |
| Drive Type / Cab | 4×2, Cab-over Engine (COE) |
| Tire Specifications | 10.00R20 18PR |
| Approach/Departure Angle (°) | 17 / 8 |
| Rated Power / Speed (kW/rpm) | 169 / 2300 |
| Fuel Type | Diesel |
| Engine Model | Cummins B6.2NS6B230 |
| Engine Type | In-line 6-cylinder, water-cooled, turbocharged intercooled |
| Seating Capacity | 3 |
| Max. Driving Speed (km/h) | 89, 98 |
| Gross Vehicle Weight (GVW) (kg) | 18000 |
| Curb Weight (kg) | 11960 |
| Rated Payload (kg) | 5845 |
| Working Speed (km/h) | 3–30 |
| Max. Sweeping Width (m) | 3.5 |
| Suction Sweeping Width (m) | 2.1 |
| Drive System | Hydraulic |
| Max. Hydraulic Pressure (MPa) | 16 |
| Unloading Method | Lifting |
Metong manufactures highway sweepers and supporting road equipment for cleaning, maintenance, and pavement construction applications. The range includes dry type road sweepers, dry and wet sweepers, mechanical highway sweepers, swirling-flow high-speed sweepers, road line marking equipment, and paving machines. Equipment configurations can be reviewed according to road conditions, cleaning requirements, operating speed, local regulations, and project objectives.
