Dry Type Road Sweeper
(Vacuum Sweeping Truck)

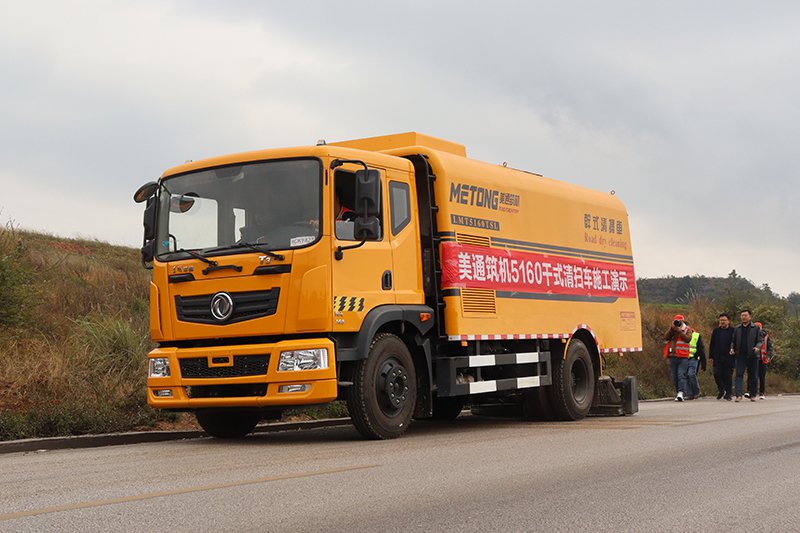

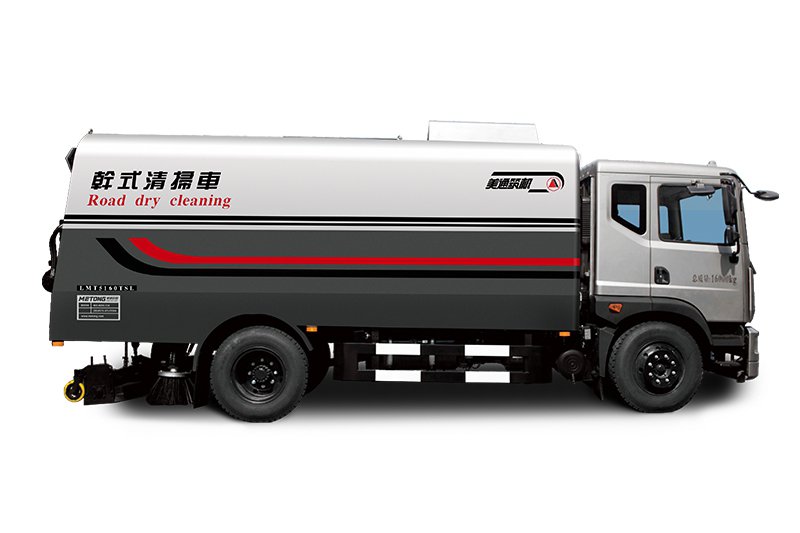

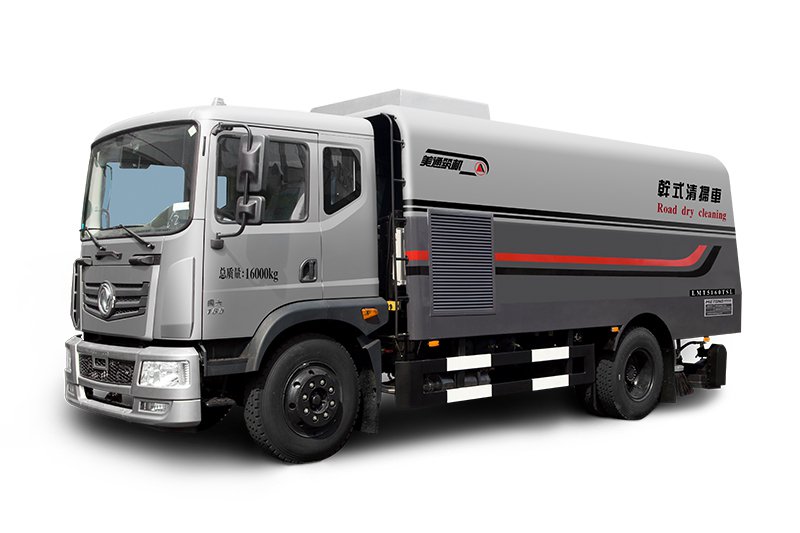

The LMT5160TSL vacuum road sweeper is built on a DONGFENG truck chassis and equipped with a dry vacuum sweeping system. The dry road sweeper uses a combined dust collection process based on negative-pressure suction, gravity settling, and filtration, allowing road cleaning to be completed without water spraying.
The vacuum road sweeper is especially suitable for milled pavement cleaning and road cleaning in areas where wet sweeping is not practical, such as regions with long cold seasons. The full operating process can be controlled from inside the cab, and operators can set operating modes and working parameters through the cab-mounted touchscreen.
Specifications
| Overall Dimensions (L×W×H) (mm) | 7960×2450×3180 |
| Hopper Capacity (m³) | 8 |
| Chassis Model | EQ1160GL6DJ |
| Chassis Manufacturer | DONGFENG |
| Drive Type / Cab | 4×2, Cab-over Engine (COE) |
| Tire Specifications | 9.00R20 16PR |
| Approach/Departure Angle (°) | 17 / 8 |
| Rated Power / Speed (kW/rpm) | 121 / 2800 |
| Fuel Type | Diesel |
| Engine Model | Yuchai YCY30165-60 |
| Engine Type | In-line 4-cylinder, water-cooled, turbocharged intercooled |
| Seating Capacity | 2 |
| Max. Driving Speed (km/h) | 88 |
| Gross Vehicle Weight (GVW) (kg) | 16000 |
| Curb Weight (kg) | 10320 |
| Rated Payload (kg) | 5550 |
| Working Speed (km/h) | 3–10 |
| Max. Sweeping Width (m) | 3.1 |
| Suction Sweeping Width (m) | 2.2 |
| Drive System | Hydraulic |
| Max. Hydraulic Pressure (MPa) | 15 |
| Unloading Method | Auger & Lifting |
Features
- High-power auxiliary engine
The vacuum road sweeper uses a high-power Yuchai engine as the auxiliary power unit for dry sweeping and suction operations. - Centrifugal fan suction system
The centrifugal fan provides suction power for dry sweeping and dust collection. - Top-mounted filter elements
The filter elements are installed from top to bottom, making them easier to remove, clean, or replace. This design helps contain dust and reduce airborne dust during normal operation. - Online pulse filter cleaning
Equipped with an online pulse automatic cleaning function, allowing continuous sweeping until the hopper is full. - Left and right extension brushes

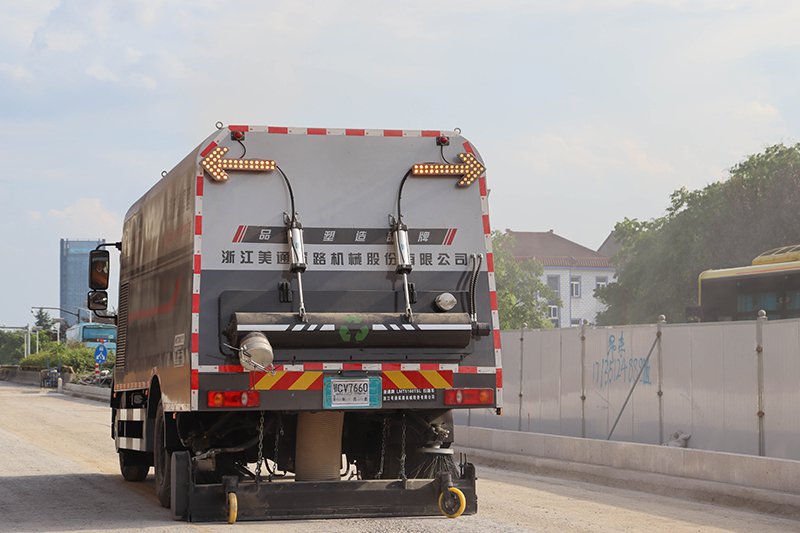

Extension brushes on both sides help clean curbs, road edges, raised edges, and other hard-to-reach areas. - Steel-wire rear sweeping roller
The rear sweeping roller uses a full steel-wire design to remove larger debris from the road surface. - Auger discharge system
Aggregate and dust inside the hopper are discharged by auger, helping reduce dust generation during unloading.
Metong manufactures highway sweepers and supporting road equipment for cleaning, maintenance, and pavement construction applications. The range includes dry type road sweepers, dry and wet sweepers, mechanical highway sweepers, swirling-flow high-speed sweepers, road line marking equipment, and paving machines. Equipment configurations can be reviewed according to road conditions, cleaning requirements, operating speed, local regulations, and project objectives.
