Solid Bitumen Melter
As road construction increases the demand for bitumen, block bitumen is widely used because it is convenient to transport and store. The bitumen melter is designed to melt block or bagged bitumen efficiently while reducing the risk of bitumen aging during heating.

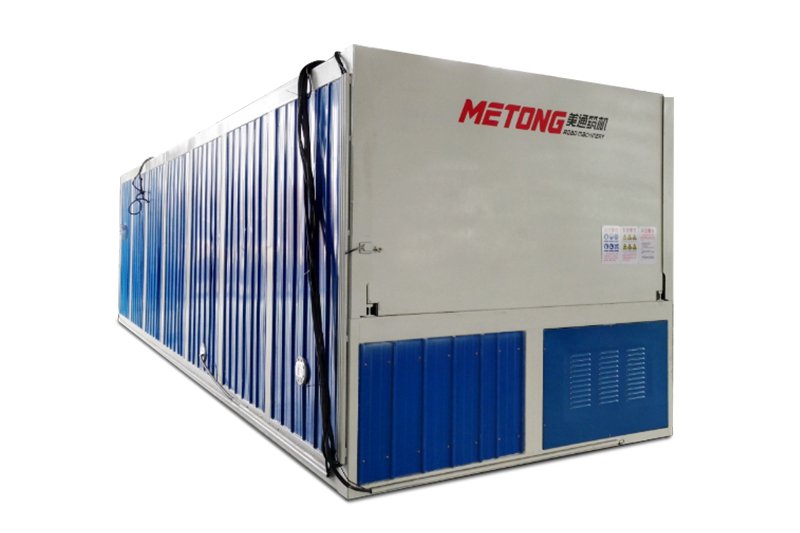

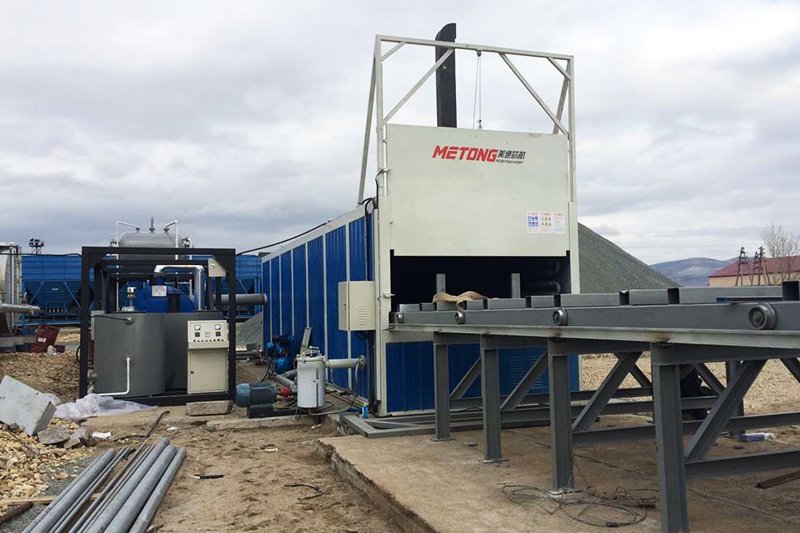

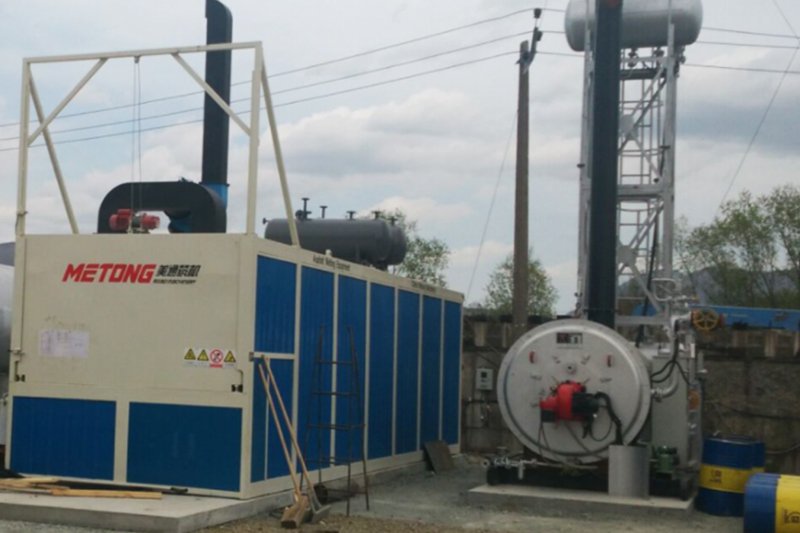

The KR16A bitumen melter uses thermal oil as the heat-transfer medium. Heating coils and exhaust heat from the thermal oil heater are used to heat, melt, and dewater the bitumen. The bitumen melter helps maintain stable heating quality while improving melting efficiency, reducing manual handling, and supporting cleaner operation. The system mainly consists of a melting chamber, trolley, thermal oil heater, and electrical control system.
Specifications
| Model | KR16A |
| Production Capacity (t/h) (Ambient Temp. ≥ 25°C) | 8 |
| Bitumen Temperature (°C) | 120–140 |
| Bitumen Block Capacity (Blocks/batch) | 16 |
| Bitumen Storage Capacity (m³) | 20 |
| Thermal Oil Heater Capacity (kcal/h) | 5×105 |
| Thermal Oil Operating Temp. (°C) | 180–200 |
| Thermal Oil Heater Dimensions (L×W×H) (mm) | 5560×2300×5750 |
| Heater Operating Weight (t) | 8 |
| Bitumen Pump | Model: YCB-25; Power: 7.5 kW; Flow: 25 m³/h |
| Induced Draft Fan | Model: Y5-47; Power: 3 kW; Flow: 4070 m³/h; Pressure: 890 Pa |
| Gate Winch | Model: JM0.3; Power: 0.75 kW; Speed: 11 m/min |
| Mobile Platform Gear Reducer | Model: JRTR77D100L4/B; Power: 4 kW; Output Speed: 43 rpm |
| Mobile Platform Speed (m/min) | 10.4 |
| Total Electrical Power (kW) (380V/50Hz) | < 31 |
| Main Engine Dimensions (L×W×H) (mm) | 10800×2970×2900 |
| Main Engine Operating Weight (t) | 15 |
| Thermal Oil Requirement (L) | Approx. 4000 |
Features
- Enclosed structure
The enclosed design supports cleaner bitumen melting operation. - Internal and external slag cleaning
The bitumen melter supports internal automatic slag discharge and external slag cleaning to help maintain cleaner material flow. - Removable lower thermal oil heating section
The lower heating section is equipped with slide rails for easier removal, cleaning, and maintenance. - Finned tube heating with exhaust heat assistance
Finned tubes on both sides use exhaust heat from the thermal oil heater for auxiliary heating, helping improve heat utilization. - Automatic control system
The bitumen melter is equipped with an automatic control system and an imported automatic ignition burner. Operation can be controlled based on oil temperature and monitored through the relevant instruments. - Containerized structure
The containerized structure makes relocation, assembly, and site operation more convenient.

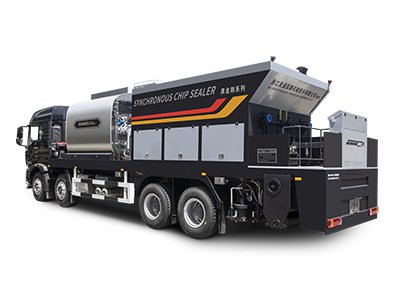

Since 2000, Metong has specialized in the design and manufacture of road construction and maintenance equipment. Our product range includes synchronous chip sealers, micro-surfacing and slurry seal trucks, asphalt distributors, asphalt mixing plants, bitumen processing equipment, and highway sweepers. We provide equipment selection, customization, commissioning, operator training, and after-sales support for customers worldwide.
