Bitumen Processing Equipment
-

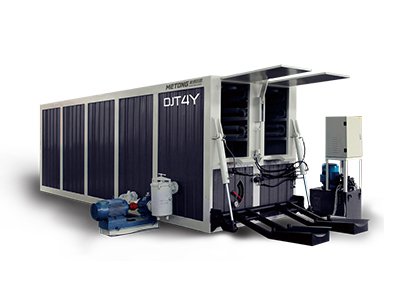

- Drummed Bitumen Melter / Decanter
- Overall Dimensions (L×W×H) (mm) 9700×2500×2550
- Operating Weight (t) 9-15
- Production Capacity (t/h) (Ambient Temp. ≥ 25°C) 8–9
- Drum Capacity (ø 580×900 mm) 3×14
-

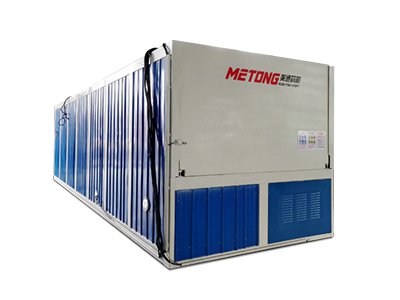

- Solid Bitumen Melter
- Production Capacity (t/h) (Ambient Temp. ≥ 25°C) 8
- Bitumen Temperature (°C) 120–140
- Bitumen Block Capacity (Blocks/batch) 16
- Bitumen Storage Capacity (m³) 20
-

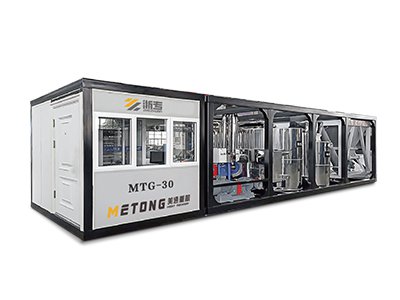

- SBS Polymer Modified Bitumen Plant
- Production Capacity (t/h) 25–30
- Operating Voltage 380 V / 50 Hz
- Total Electrical Power (kW) ≤146
- Dimensions (L×W×H) (mm) 11800×2500×2600
-

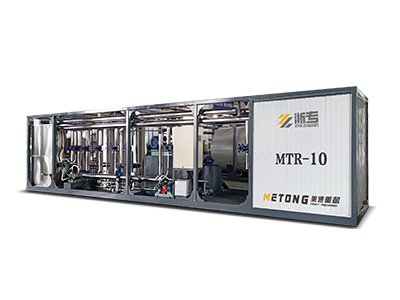

- Bitumen Emulsion Plant
- Production Capacity (t/h) ≤10
- Total Electrical Power (kW) ≤67
- Oil-to-Water Ratio 5:5–6:4
- Bitumen Emulsion Fineness (μm) ≤ 5 (≥ 85% passing)
-

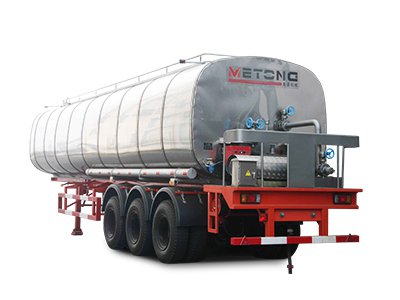

- Bitumen Tank Trailer
- Overall Dimensions (L×W×H) (mm) 12500×2500×3600
- Operating Weight (kg) 11000-14000
- Bitumen Tank Capacity (L) 20000-39000
- Axle Type FUWA 13t (3 axles)
-

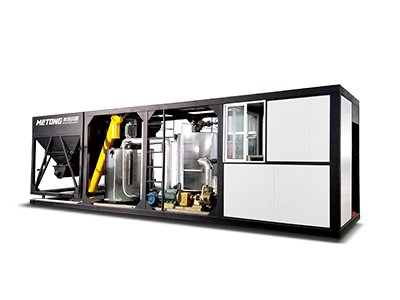

- Rubber Bitumen Plant
- Production Capacity (t/h) 10-20
- Total Electrical Power (kW) (380V/50Hz) ≤ 89.5
- Main Unit Dimensions (L×W×H) (mm) 10500×2250×2500
- Main Unit Operating Weight (t) 7
Since 2000, Metong has specialized in the design and manufacture of road construction and maintenance equipment. Our product range includes synchronous chip sealers, micro-surfacing and slurry seal trucks, asphalt distributors, asphalt mixing plants, bitumen processing equipment, and highway sweepers. We provide equipment selection, customization, commissioning, operator training, and after-sales support for customers worldwide.
