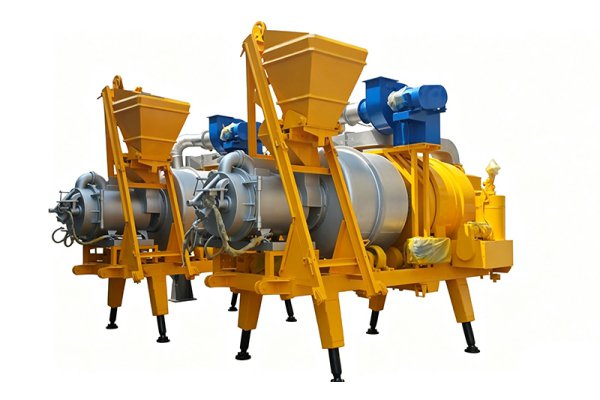

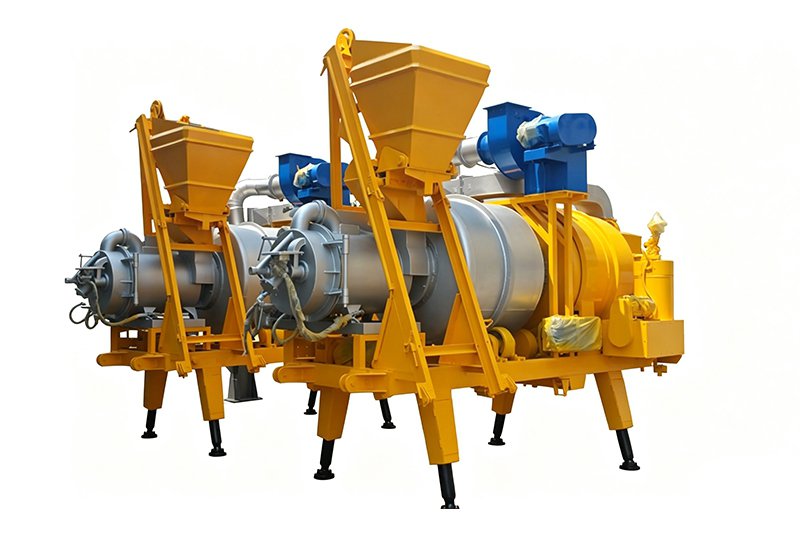

Mini Asphalt Mixer
Mini asphalt mixer is a mobile forced asphalt concrete mixing unit designed for highway pavement maintenance and asphalt road construction support. The mini asphalt mixer integrates an intermittent dryer drum, twin-shaft forced mixer, and primary dust collector into a trailer-mounted structure, making the system easier to move and deploy between project sites.
The mobile asphalt mixing plant consists of a main unit, finished mix silo, batching station, electrical control cabinet, control room, and related components. It is mainly used for highway pavement maintenance and construction or maintenance work on high-standard asphalt pavement.
Specifications
| Model | ||
| Rated Capacity (t/h) | 20 | 30 |
| Hopper Capacity (m³) | 0.75 | 1 |
| Batch Capacity (kg/batch) | 1000 | 1500 |
| Discharge Temperature (°C) | 120–170 (adjustable) | 120–170 (adjustable) |
| Applicable Materials | Asphalt Concrete, Asphalt Macadam, Asphalt Sand | Asphalt Concrete, Asphalt Macadam, Asphalt Sand |
| Fuel Consumption (kg/t) | 5.5–7.5 | 5.5–7.0 |
| Drying Drum Speed (rpm) | 18.1 | 15.4 |
| Total Electrical Power (kW) | 34 (Fuel Oil Type) | 49.5 |
| Control System | PLC Programmable Centralized Control | PLC Programmable Centralized Control |
