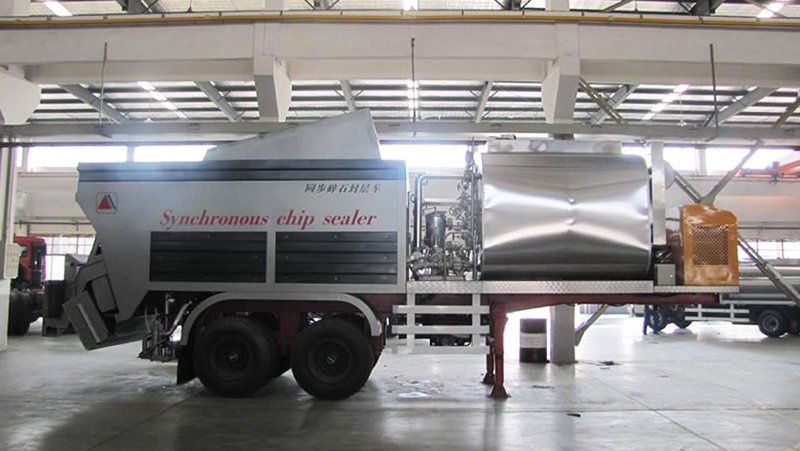

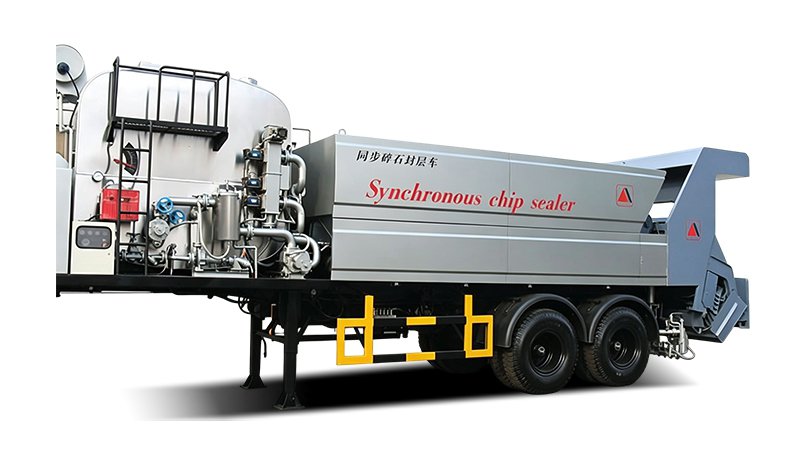

Synchronous Chip Sealer Trailer
The trailer Chip Sealing Distributors and Equipment is our newly-developed road construction equipment which is widely used for fast synchronous spraying operations. It can perform bitumen spraying and chippings spreading operations at the same time or respectively. As the trailer Chip Sealing Distributors and Equipment can help greatly improve the wear resistance, skidproof and waterproof performance of the road, it is being increasingly used. It is suitable for the construction of all grades of highways.
| Model | |
| Dimension(L*W*H mm) | 9700 X 2500 X 3600 |
| Tank Capacity | 6 |
| Aggregate Hopper (m3) | 12 |
| Engine Model | Cummins 4BTA3.9 |
| Kerb Mass (kg) | 3500 |
| Rated Load Mass (kg) | 12800 |
| Spray Width | 2070mm |
| Max. Spray Width | 4000mm |
| Spreading Quantity | 0.5-3.0 L/m2 |
| Spray Bar Ground Clearance | 250-500mm |
| Chippings Size | 5-25mm |
Asphalt Tank
The large-capacity asphalt tank is designed for fast heating, combining dual burners, dual U-shaped fire-tube heating, and thermal-oil circulation heating. Heat-transfer fins are arranged around the upper and lower fire tubes, while a horizontal heavy-duty agitator and automatic temperature control system help improve heating efficiency. The heating rate can reach 20°C/h or above.
