Features

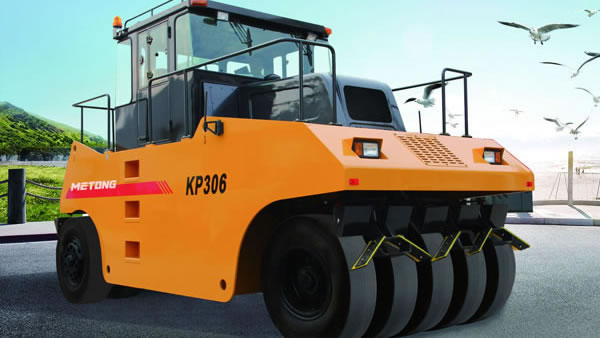

1. The KP306 pneumatic tyred roller is a full hydraulic roller equipped with powerful DEUTZ engine and maintenance-free battery cell.
2. Streamlined styling and upturning engine hood makes the road roller look beautiful.
3. The SAUER hydraulic driving system with stepless speed regulation function helps improve the compaction effects and enable our pneumatic tyred roller to better meet the road construction requirements.
4. You can adjust the road compactor's counter weight and ground pressure by increasing or reducing the weight of ballast or by changing the tyre pressure.
5. A reliable water sprinkling system with multi-level water filters is configured to our pneumatic tyred roller.
6. This heavy engineering machinery supports pneumatic hydraulic braking, full hydraulic braking and dry braking.
7. The operator will enjoy a good working environment using our road compaction equipment since its cab comes with comfortable seat, double operation devices and air conditioner.
Item | Unit | Parameter |
Operating mass (Min. / Max.) | kg | 30000 |
Ground pressure | kPa | 250-420 |
Compaction width | mm | 2750 |
Speed I | km/h | 0-7 |
Speed II | km/h | 0-14 |
Gradeability | % | 20 |
Turning radius | mm | 9000 |
Swing distance of front tyre | mm | ±45 |
Overlap between front & rear tyre | mm | 50 |
Min. ground clearance | mm | 290 |
Engine model | - | DEUTZ |
Rated power | kW | 129 |
Tyre size (smooth) | - | 11.00-20 |
Tyre number (front/rear) | - | 5/6 |
Overall dimension (L×W×H) | mm | 5200×2845×3380 |
Remark: Due to continual improvement of technologies, the technical parameters are subject to change without prior notice.
