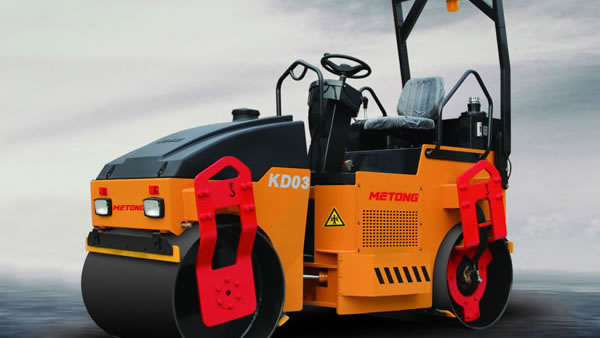

Double Drum Vibratory Roller (Full Hydraulic Road Roller, Model KD03)

Features
1. As a full hydraulic road roller, our KD03 double drum vibratory roller is of high performance and high working stability.
2. Hydraulic vibration with large centrifugal force makes for high-density compaction and the partition design of the steering wheel results in better compaction effects.
3. Fully hydraulic drive and electro-hydraulic control devices make our double drum vibratory roller easy to operate.
4. The traveling speed of this vibratory road roller can be adjusted through its continuously variable transmission system.
5. Articulated steering system gives high steering flexibility to the road construction machine.

Parameters of Full Hydraulic Double Drum Vibratory Roller
Item Unit Parameter
Operating mass kg 3000
Static linear load N/cm 120/170
Vibration amplitude mm 0.55
Vibration frequency Hz 50
Centrifugal force kN 30
Speed range km/h 0-8.5
Gradeability % 30
Turning radius (inside/outside) mm 3065/4400
Drum width mm 1040
Drum diameter mm 750
Engine model - ZN385Q
Rated power kW 21
Overall dimension (L×W×H) mm 2900×1240×2600

Remark: Due to continual improvement of technologies, the technical parameters are subject to change without prior notice.
