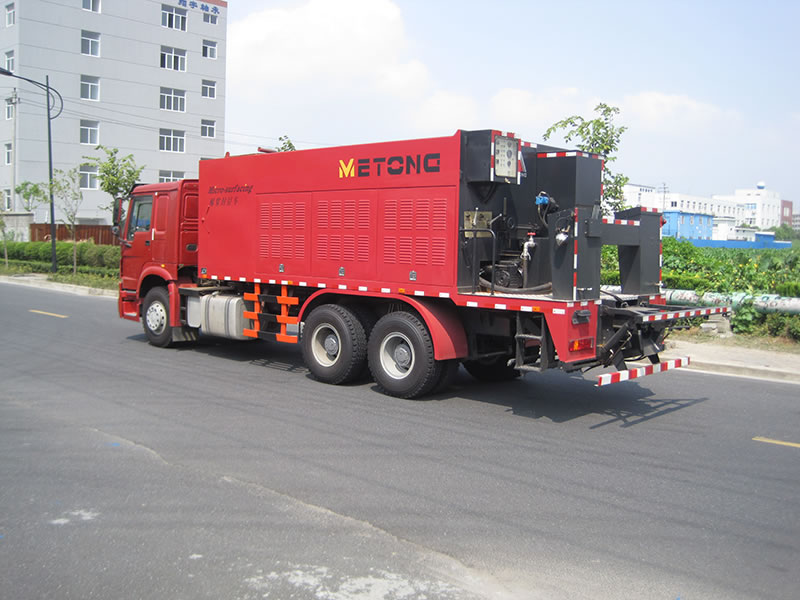

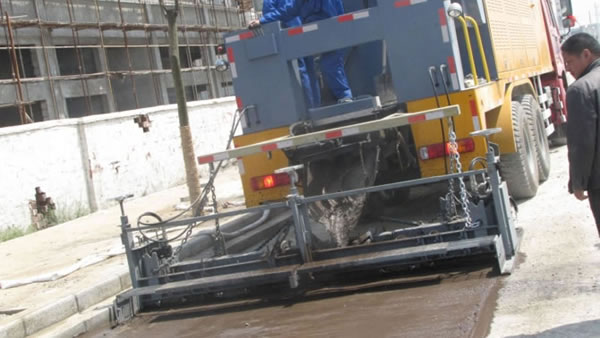

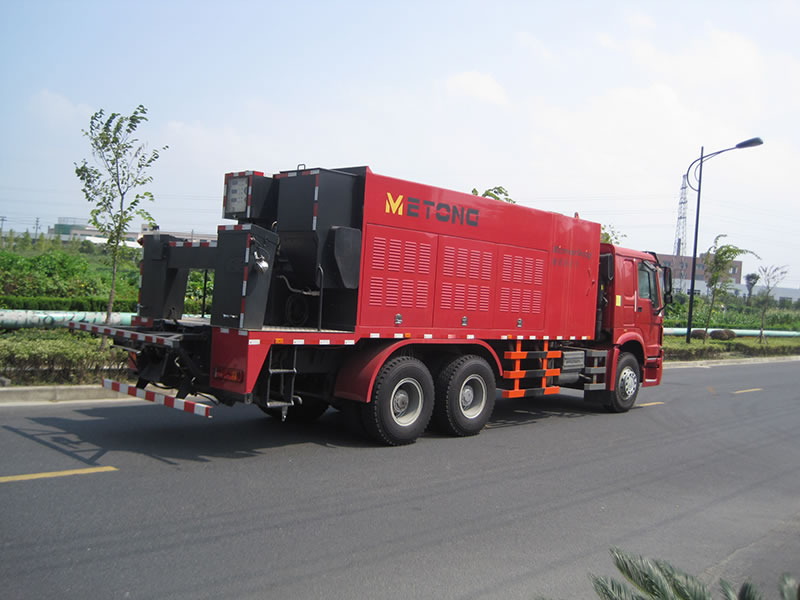

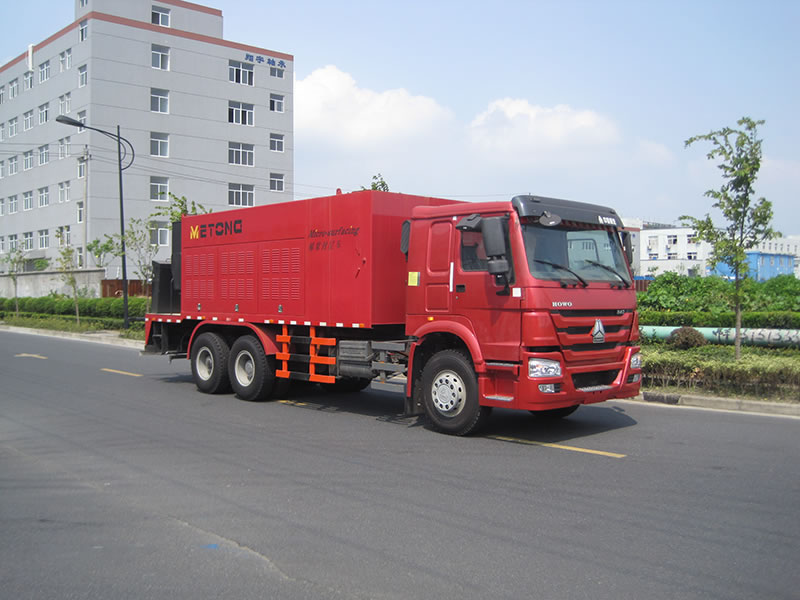

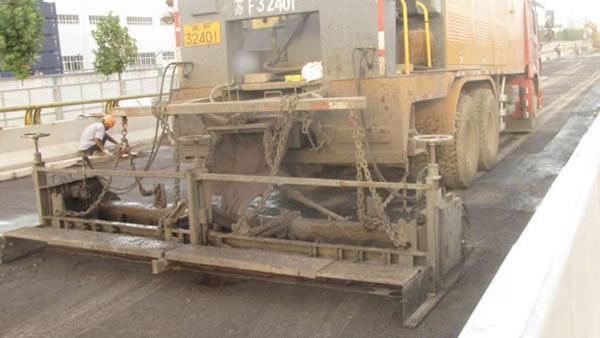

LMT5255TXF micro-surfacing equipment, as the special machinery for asphalt pavement construction, is developed by our company and can be widely used in the fast synchronous spraying work of highways. The asphalt and aggregate can be sprayed together or respectively. It has some positive features including cost-saving, surface wear resistance, anti-skidding, water proof and quick resumption of normal traffic after construction. It is suitable for the construction of the highways in different levels.
Main Technical ParametersChassis | Front Overhang/Rear Overhang | mm | 1500/2840 |
Wheelbase (Rear) | mm | 1830 | |
Approach Angle/ Departure Angle | ° | 16°/12° | |
Minimum Ground Clearance | mm | 350 | |
Tire Specification | / | 12.00-20 | |
Power | KW/(r/min) | 196/1900 | |
Others | Outline Dimension of the Whole Vehicle(L×W×H) | mm | 10290×2495×3400 |
Full Load Weight | kg | 25000 | |
Curb Weight | kg | 15950 |
