Features

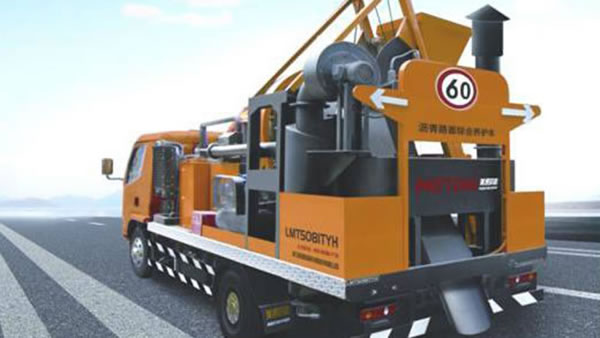

1. The LMT5081TYH road maintenance truck is remanufactured on the basis of the chassis which is well known in domestic market.
2. It could automatically elevate to feed stones and materials.
3. Its mixing tank adopts imported burner to ensure the efficiency and stability in work.
4. The Asphalt tank with thermal insulation function is equipped with a hand-hold spray rod for evenly spraying asphalt.
5. The generator with power 15KW installed in the truck could be considered as a mobile power station.
6. There is a large space in front of the LMT5081TYH road maintenance truck to load some devices including the plate, cutting machine and electric hammer.
Class | Item | Parameter |
General Parameters | Productivity | ≤3-5T/h |
Working Voltage | 380V/50HZ | |
Total Power | ≤15Kw | |
Dimension(mm) | 6980×2120×3090 | |
Hand-hold Asphalt Spraying Speed(L/min) | 30 | |
Chassis Power(kw) | 80 | |
Chassis Maximum Load (kg) | 2495 | |
Heating System | Heat-transfer Oil Pump (m³/h) | 1.5 |
Temperature of Heat-transfer Oil (℃) | 100-160 | |
Burner (KW) | 60 | |
Heat Time (h) | 2-3 | |
Asphalt System | Capacity (m³) | 0.48 |
Asphalt Temperature (℃) | 100-160 | |
Asphalt Pump (m³/h) | 3 | |
Pressure (Mpa) | 0.6 | |
Dedusting System | Inlet Volume (m³/h) | 1450 |
Minerals Elevating and Feed System | Hopper Capacity(m³) | 0.11 |
Winch Capacity(Kg) | 300 | |
Electric System | Generator(KW) | 15 |
Hoist System | Electric Hoist(kg) | 200 |
Truck-loading Facilities | Max. Cutting Depth of Cutting Machine(mm) | 120 |
Plate Vibration Force(N) | 18000 | |
Vibration Frequency of Electric Hammer (times/ min) | 1450 |

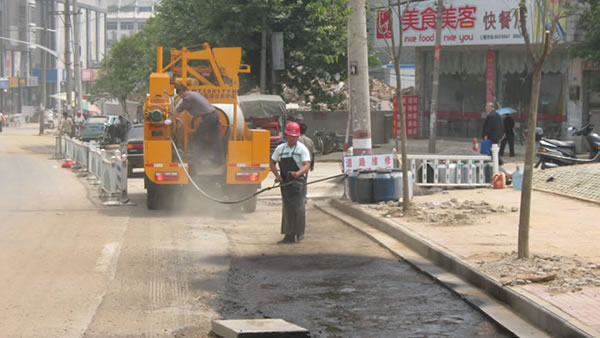

Construction Case
